Hybrid Inverters
Invergy Β· Hybrid Series
Invergy Β· Hybrid Series
Hybrid
Inverters
Single Phase & Three Phase
Invergy's hybrid inverter range combines solar generation, battery storage, and grid power in one intelligent unit. From 3KW residential to 80KW commercial β with DG sync, 6 charge/discharge periods, and up to 10-unit parallel operation.
IP 65 Rated
DG Synchronization
Battery + Solar + Grid
5-Year Warranty
BIS Certified
WiFi + 4G + Bluetooth

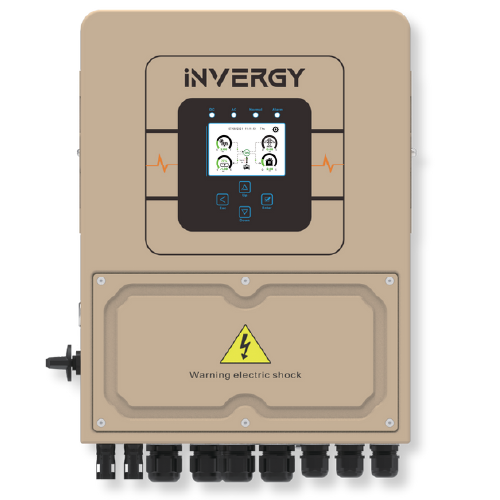

Residential Series
Single Phase Hybrid (LV)
INV EU Series Β· 3KW β 8KW Β· 24V/48V
97.6%
Max. Eff.
Max. Eff.
IP65
Rating
Rating
5 Yr
Warranty
Warranty
Why Invergy Hybrid
Key Features
One intelligent unit manages solar, battery, grid, and diesel generator β giving you uninterrupted power with maximum efficiency across residential and commercial installations.
Solar + Battery + Grid in One
Seamlessly manages all three power sources β prioritising solar, storing excess in batteries, and drawing from grid only when needed.
DG Synchronization
Automatically syncs with diesel generators for seamless backup β zero transfer time, no manual switching required.
6 Charge/Discharge Periods
Programme up to 6 time-based battery charge and discharge windows β optimise for peak tariff avoidance and off-peak charging.
Up to 10-Unit Parallel
Stack up to 10 units in parallel for both on-grid and off-grid operation β scale from residential to large commercial with the same platform.
IP 65 Rated
Dust-tight and water jet protected β built for outdoor installation in all Indian weather conditions without performance compromise.
Multi-Mode Monitoring
WiFi, Bluetooth, GPRS, 4G, and LAN monitoring options β track performance remotely via app or web portal in real time.
AC Couple Retrofit
AC coupling allows retrofit into existing solar systems β add battery storage without replacing your current solar setup.
Colourful Touch LCD
Intuitive touch display shows real-time power flow, battery status, grid status, and alerts β no app required for on-site monitoring.
100% Unbalanced Output
Three-phase models support 100% unbalanced output β each phase can deliver up to 50% rated power independently for mixed loads.
Full Technical Data
Technical Specifications
Complete electrical and mechanical parameters from official Invergy datasheets. Download PDFs for certified documentation.
| Parameter | 3KW Β· 24V | 3.6KW β 6KW Β· 48V | 8KW Β· 48V |
|---|---|---|---|
| Battery Input | |||
| Battery Type | Lead-Acid or Lithium-Ion | ||
| Battery Voltage Range | 20 β 30 V | 40 β 60 V | |
| Max. Charging Current | 140 A | 90 β 135 A | 190 A |
| Max. Discharging Current | 140 A | 90 β 135 A | 190 A |
| PV String Input | |||
| Max. PV Access Power | 6000 Wp | 7200 β 12000 Wp | 16000 Wp |
| Max. PV Input Voltage | 500 V | ||
| MPPT Voltage Range | 150 β 425 V | ||
| No. of MPPT Trackers | 1 | 2 | 2 |
| Max. PV Input Current | 18 A | 18+18 A | 26+26 A |
| AC Input / Output | |||
| Rated Active Power | 3000 W | 3600 β 6000 W | 8000 W |
| Max. Apparent Power | 3300 VA | 3960 β 6600 VA | 8800 VA |
| Rated Voltage / Range | 220/230 V Β· 0.85Un β 1.1Un | ||
| Grid Frequency Range | 50 Hz (45β55) / 60 Hz (55β65) | ||
| Power Factor Range | 0.8 leading β 0.8 lagging | ||
| THD | < 3% (at nominal power) | ||
| Efficiency | |||
| Max. Efficiency | 97.60% | ||
| Euro Efficiency | 97.00% | ||
| MPPT Efficiency | > 99% | ||
| General Data | |||
| Dimensions (W Γ H Γ D) | 376 Γ 470 Γ 241 mm | ||
| Weight | 17.6 kg | 19 kg | 26.8 kg |
| Protection Rating | IP65 | ||
| Operating Temperature | -40Β°C to +60Β°C (Derate >45Β°C) | ||
| Max. Altitude | 2000 m | ||
| Cooling | Natural | Intelligent Air Cooling | |
| Communication | RS485 / RS232 / CAN | ||
| Monitoring | GPRS / WiFi / Bluetooth / 4G / LAN | ||
| Noise | β€ 30 dB | ||
| Warranty | 5 Years | ||
| Parameter | 5KW β 10KW Β· 48V | 12KW β 20KW Β· 48V |
|---|---|---|
| Battery Input | ||
| Battery Type | Lead-Acid or Lithium-Ion | |
| Battery Voltage Range | 40 β 60 V | |
| Max. Charging/Discharging Current | 120 β 210 A | 240 β 350 A |
| PV String Input | ||
| Max. PV Access Power | 10000 β 20000 Wp | 24000 β 40000 Wp |
| Max. PV Input Voltage | 800 V | |
| MPPT Voltage Range | 200 β 650 V | 160 β 650 V |
| No. of MPPT Trackers | 2 | |
| Max. PV Input Current | 20+20 A | 36+36 A |
| AC Input / Output | ||
| Rated Active Power | 5000 β 10000 W | 12000 β 20000 W |
| Max. Apparent Power | 5500 β 11000 VA | 13200 β 22000 VA |
| Rated Voltage | 220/380 V Β· 230/400 V | |
| Grid Frequency Range | 50 Hz (45β55) / 60 Hz (55β65) | |
| Max. AC Passthrough | 45 A | 70 A |
| Grid Connection | 3L + N + PE | |
| Efficiency | ||
| Max. Efficiency | 97.60% | |
| MPPT Efficiency | > 99% | |
| General Data | ||
| Dimensions (W Γ H Γ D) | 376 Γ 470 Γ 241 mm | |
| Weight | 35.2 kg | 50.6 kg |
| Protection Rating | IP65 | |
| Operating Temperature | -40Β°C to +60Β°C (Derate >45Β°C) | |
| Max. Altitude | 3000 m | |
| Cooling | Intelligent Air Cooling | |
| Communication | RS485 / RS232 / CAN | |
| Monitoring | GPRS / WiFi / Bluetooth / 4G / LAN | |
| Warranty | 5 Years | |
| Parameter | 30KW β 50KW | 60KW β 80KW |
|---|---|---|
| Battery Input | ||
| Battery Type | Li-Ion (High Voltage) | |
| Battery Voltage Range | 160 β 800 V | 160 β 1000 V |
| Max. Charging/Discharging Current | 50+50 / 80+80 A | |
| PV String Input | ||
| Max. PV Access Power | 60000 β 100000 Wp | 120000 β 160000 Wp |
| Max. DC Input Voltage | 1000 V | |
| MPPT Voltage Range | 150 β 850 V | |
| No. of MPPT Trackers | 3 β 4 | 6 |
| AC Input / Output | ||
| Rated Active Power | 30000 β 50000 W | 60000 β 80000 W |
| Max. Apparent Power | 33000 β 55000 VA | 66000 β 88000 VA |
| Rated Voltage | 220/380 V Β· 230/400 V | |
| Max. AC Passthrough | 200 A | |
| Peak Power (off-grid) | 2.5Γ rated Β· 10s | 1.5Γ rated Β· 10s |
| Efficiency | ||
| Max. Efficiency | 97.60% | 98.70% |
| Euro Efficiency | 97.00% | 98.10% |
| MPPT Efficiency | > 99% | |
| General Data | ||
| Dimensions (W Γ H Γ D) | 527 Γ 894 Γ 294 mm | 606 Γ 927 Γ 314 mm |
| Weight | 80 kg | 105 kg |
| Protection Rating | IP65 | |
| Operating Temperature | -40Β°C to +60Β°C (Derate >45Β°C) | |
| Max. Altitude | 2000 m | 3000 m |
| Cooling | Intelligent Air Cooling | |
| Noise | < 65 dB | |
| Communication | RS485 / RS232 / CAN | |
| Monitoring | GPRS / WiFi / Bluetooth / 4G / LAN | |
| Installation | Wall-Mounted | |
| Warranty | 5 Years / 10 Years | |
Available Models
Choose Your Configuration
Three distinct series covering residential to large commercial β single phase LV, three phase LV, and three phase HV high-voltage battery systems.
3
KW Β· 24V
INV(EU)-3kW-24V
3.6
KW Β· 48V
INV(EU)-3.6kW-48V
5
KW Β· 48V
INV(EU)-5kW-48V
6
KW Β· 48V
INV(EU)-6kW-48V
8
KW Β· 48V
INV(EU)-8kW-48V
Max Efficiency: 97.6%
MPPT Efficiency: >99%
Max Charge Current: 190A
Warranty: 5 Years
5
KW Β· 48V
INV 5K-3P(LV)
6
KW Β· 48V
INV 6K-3P(LV)
8
KW Β· 48V
INV 8K-3P(LV)
10
KW Β· 48V
INV 10K-3P(LV)
12
KW Β· 48V
INV 12K-3P(LV)
15
KW Β· 48V
INV 15K-3P(LV)
20
KW Β· 48V
INV 20K-3P(LV)
Max Efficiency: 97.6%
Max Charge Current: 350A
AC Voltage: 220/380V Β· 230/400V
Altitude: 3000m
30
KW Β· HV
INV(EU)-30K(HV)
40
KW Β· HV
INV(EU)-40K(HV)
50
KW Β· HV
INV(EU)-50K(HV)
60
KW Β· HV
INV(EU)-60K(HV)
80
KW Β· HV
INV(EU)-80K(HV)
Max Efficiency: 98.7%
Battery Voltage: 160β1000V
Max MPPT Trackers: 6
Series: C&I Commercial
Built-In Safety
Protection Systems
Every Invergy hybrid unit ships with a comprehensive protection stack covering DC, AC, battery, and grid events β all standard, nothing optional except AFCI.
DC Polarity Reverse Protection
β Standard
AC Output Overcurrent
β Standard
Thermal Protection
β Standard
AC Output Overvoltage
β Standard
AC Output Short Circuit
β Standard
Surge Protection TYPE II
β Standard
Ground Fault Current Monitoring
β Standard
Island Protection Monitoring
β Standard
DC Input Switch
β Standard
Residual Current (RCD) Detection
β Standard
Power Network Monitoring
β Standard
AFCI Arc Fault Detection
β Optional
Get In Touch
Ready to Go Hybrid?
Our solar experts will help you select the right Invergy hybrid model β from 3KW residential to 80KW commercial. Battery storage, DG sync, and grid tie in one unit.
