On-Grid Inverters
Invergy Β· GTI Series

On-Grid
Inverters

Single & Three Phase

Invergy's GTI series delivers industry-leading efficiency up to 98.3% for India's residential and commercial rooftops. Built tough with IP65 protection, smart dual-cooling, and a 365-day uptime guarantee.

IP 65 Rated
Dual Cooling System
AFCI Optional
8-Year Warranty
BIS Certified
WiFi + RS485

Contact Us
Download Datasheet
3-Phase Datasheet

Residential Series
Invergy

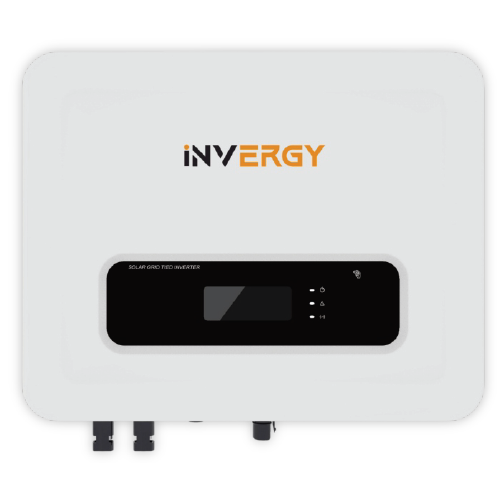

Invergy Single Phase On-Grid Inverter

Single Phase Solar GTI
INV(EU)-EGT-01 Series Β· 1.5KW – 6KW
97.8%
Max. Eff.
IP65
Rating
8 Yr
Warranty

Why Invergy GTI

Key Features

Built for India's grid conditions β€” from voltage swings to harsh outdoor environments β€” the GTI series is engineered to perform, consistently.

🌧️
IP 65 Rated
Dust-tight and protected against powerful water jets. Reliable in all Indian weather conditions, rooftop or ground-mount.

πŸŒ€
Dual Cooling System
Force + natural cooling combined for stable thermal management β€” extending lifespan and maintaining peak efficiency under high ambient heat.

⚑
Unique H6 Topology
Patented H6 transformerless design actively prevents leakage current, reducing ground fault risk and improving system safety.

πŸ”₯
AFCI (Optional)
Arc Fault Circuit Interrupter detects and cuts arc faults before they cause electrical fires β€” an optional safety upgrade for every install.

πŸ”Œ
Wide AC Voltage Range
Handles AC grid voltage up to 290V β€” built to absorb India's grid fluctuations without tripping or performance loss.

πŸ›‘οΈ
24-Hour Replacement Guarantee
365-day uptime commitment. Invergy replaces faulty units within 24 hours β€” protecting your energy output and investment ROI.

Full Technical Data

Technical Specifications

Complete electrical and mechanical parameters from the official Invergy datasheets. Download PDFs below for certified documentation.


Parameter 1.5KW – 3.3KW 3.6KW – 4.2KW 5KW – 6KW
Input (DC)
Recommended Max. PV Power 2250 – 4950 Wp 5400 – 6300 Wp 7500 – 7800 Wp
Max. PV Input Voltage 550 V
MPPT Voltage Range 70 – 450 V 100 – 450 V 100 – 500 V
No. of MPPT Inputs 1
Max. PV Input Current 18 A 30 A
Max. DC Short-Circuit Current 25 A 40 A
Output (AC)
Nominal AC Output Power 1500 – 3300 W 3600 – 4200 W 5000 – 6000 W
Max. AC Output Power 1650 – 3630 VA 3960 – 4620 VA 5500 – 6600 VA
Nominal AC Voltage 220 V / 230 V
AC Voltage Range 140 V – 300 V
Grid Frequency Range 50 Hz (45–55) / 60 Hz (55–65)
Power Factor ~1 Β· Adjustable 0.8 lead – 0.8 lag
Efficiency
Max. Efficiency 97.30 – 97.50% 97.80% 97.50 – 97.60%
MPPT Efficiency 99.90%
General Data
Dimensions (W Γ— H Γ— D) 315 Γ— 300 Γ— 108 mm 380 Γ— 305 Γ— 118 mm
Weight 5 kg 8 kg
Protection Rating IP65 (IEC60529)
Operating Temperature -25Β°C to +60Β°C
Humidity Range 0 – 95% (Non-condensing)
Cooling Method Smart Dual Cooling (Force + Natural)
Communication WiFi Standard Β· RS485 Optional
Display Graphic LCD
DC Connection MC4 Compatible
Night Power Consumption < 0.2 W
Acoustic Noise < 25 dB
Warranty 8 Years

Parameter 5KW – 8KW 10KW – 12KW 15KW – 25KW
Input (DC)
Recommended Max. PV Power 7500 – 12000 Wp 15000 – 18000 Wp 25500 – 30000 Wp
Max. PV Input Voltage 1000 V
MPPT Voltage Range 160 – 850 VDC 200 – 850 VDC
No. of MPPT Inputs 1 2
Max. PV Input Current 27 A 26/26 A 36/26 A
Max. DC Short-Circuit Current 48 A 34/34 A 46/34 A
Output (AC)
Nominal AC Output Power 5000 – 8000 W 10000 – 12000 W 15000 – 25000 W
Max. AC Output Power 5500 – 8800 VA 11000 – 13200 VA 16500 – 27500 VA
Nominal AC Voltage 400 Vac Β· 50/60 Hz
AC Voltage Range 280 – 490 Vac
Grid Frequency Range 50 Hz (45–55) / 60 Hz (55–65)
Power Factor ~1 Β· Adjustable 0.8 lead – 0.8 lag
Efficiency
Max. Efficiency 98.20 – 98.30% 97.40 – 99.50% 98.50%
MPPT Efficiency 99.90%
General Data
Dimensions (W Γ— H Γ— D) 420 Γ— 370 Γ— 130 mm 520 Γ— 510 Γ— 160 mm
Weight 16 kg 23 kg
Protection Rating IP65 (IEC60529)
Operating Temperature -25Β°C to +60Β°C
Max. Operating Altitude 3000 m (No Power Derating)
Cooling Method Smart Cooling
Communication WiFi Standard Β· RS485 Β· GPRS
Display LCD
DC Connection MC4 Compatible
Acoustic Noise < 30 dB
Warranty 8 Years

Available Models

Choose Your Configuration

From compact 1.5KW residential units to robust 25KW commercial installations β€” single and three phase options available.


1.5
KW
INV(EU)-E1.5GT-01

2.0
KW
INV(EU)-E2.0GT-01

2.2
KW
INV(EU)-E2.2GT-01

3.0
KW
INV(EU)-E3.0GT-01

3.3
KW
INV(EU)-E3.3GT-01

3.8
KW
INV(EU)-E3.8GT-01

4.0
KW
INV(EU)-E4.0GT-01

4.2
KW
INV(EU)-E4.2GT-01

5.0
KW
INV(EU)-E5GT-01

6.0
KW
INV(EU)-E6GT-01

MPPT Efficiency: 99.9%
Max Efficiency: 97.8%
AC Voltage: 220V / 230V
Warranty: 8 Years

5
KW
INV 5.0 TP

6
KW
INV 6.0 TP

8
KW
INV 8.0 TP

10
KW
INV 10.0 TP

12
KW
INV 12.0 TP

15
KW
INV 15.0 TP

18
KW
INV 18.0 TP

20
KW
INV 20.0 TP

25
KW
INV 25.0 TP

MPPT Efficiency: 99.9%
Max Efficiency: 98.3%
AC Voltage: 400 Vac
Max Altitude: 3000m

Built-In Safety

Protection Systems

Every Invergy GTI unit ships with a comprehensive protection stack as standard β€” not optional extras. Safety is built in, not bolted on.

πŸ”„

DC Reverse Polarity Protection

βœ“ Standard

⚑

Short-Circuit Protection

βœ“ Standard

πŸ’§

Leakage Current Protection

βœ“ Standard

🌩️

Surge Protection

βœ“ Standard

πŸ”Œ

DC Switch

βœ“ Standard

🏝️

Anti-Islanding / Overvoltage

βœ“ Standard

πŸ“‘

PV String Current Monitoring

βœ“ Standard

πŸ“Š

Grid Monitoring

βœ“ Standard

πŸ›‘

Residual Current Protection

βœ“ 3-Phase

🌑️

Thermal Overload Protection

βœ“ Standard

πŸ”ƒ

Smart Cooling Management

βœ“ Standard

πŸ”₯

AFCI Arc Fault Detection

βš™ Optional

Get In Touch

Ready to Go On-Grid?

Our solar experts will help you select the right Invergy GTI model and capacity for your residential or commercial installation.

Contact Us
Single Phase Datasheet
Three Phase Datasheet
